Lights
Lights are often overlooked in the custom car industry due to their complexity and the amount of design time that goes into them. I’ve been fortunate enough to be tasked with designing custom lights for a variety of high end show cars. From weatherproof housings, to lenses, to custom PCBs, these lighting assemblies pose a range of engineering and design challenges.

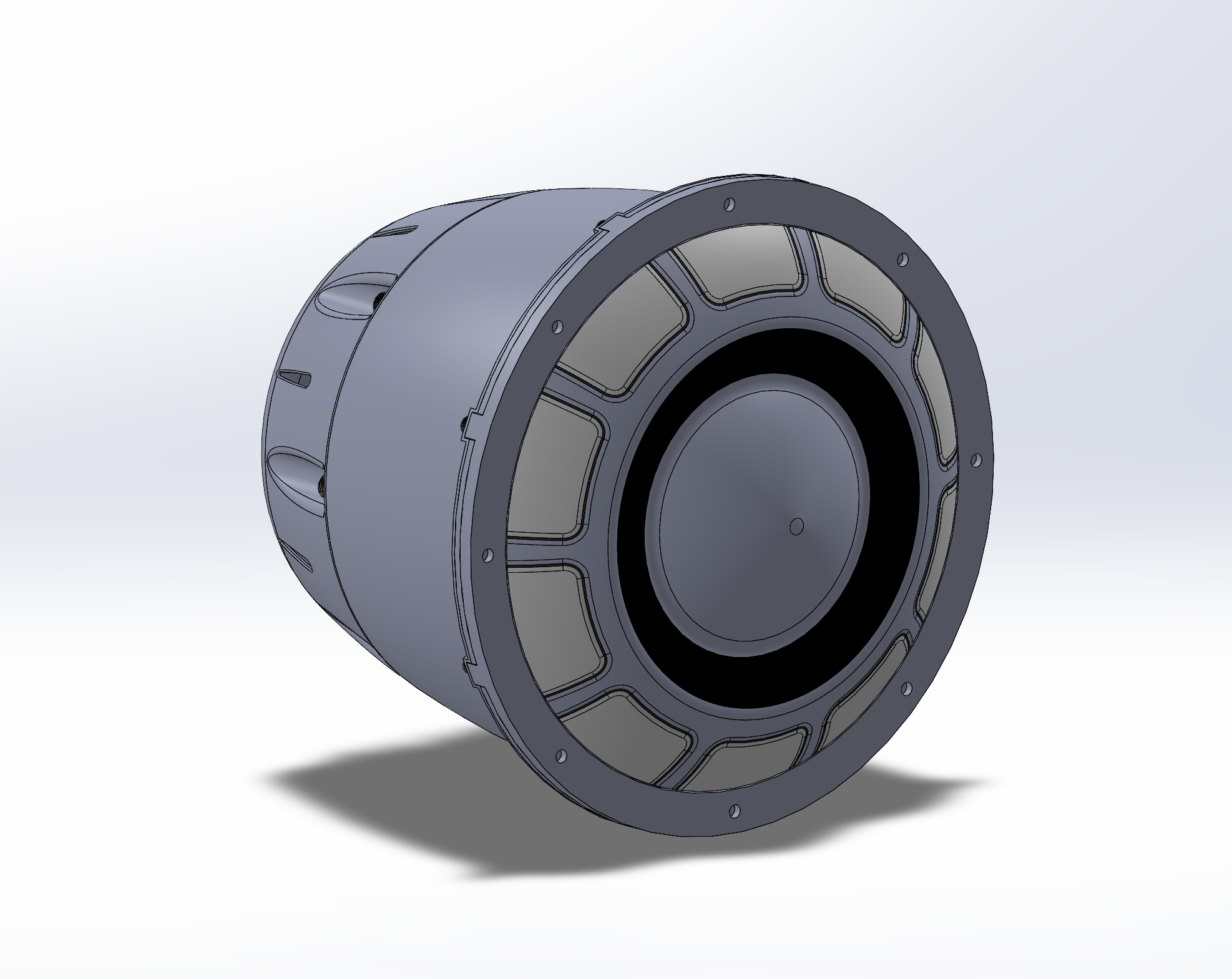

Custom projector headlight assembly for a 1955 Chevrolet Nomad show car

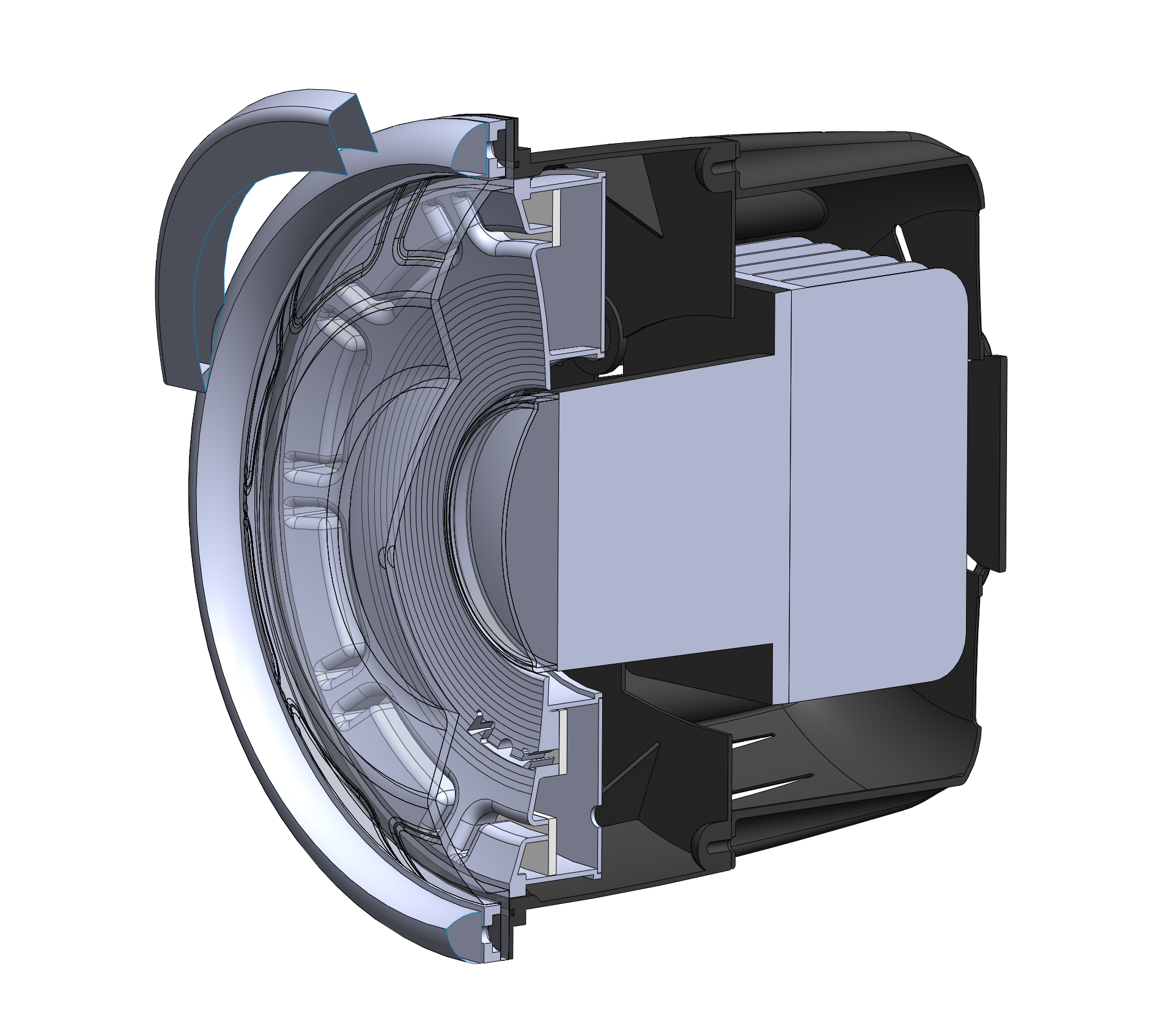

Cutaway view of the assembly showing the provisions for fasteners, light diffusing panels, and o-rings

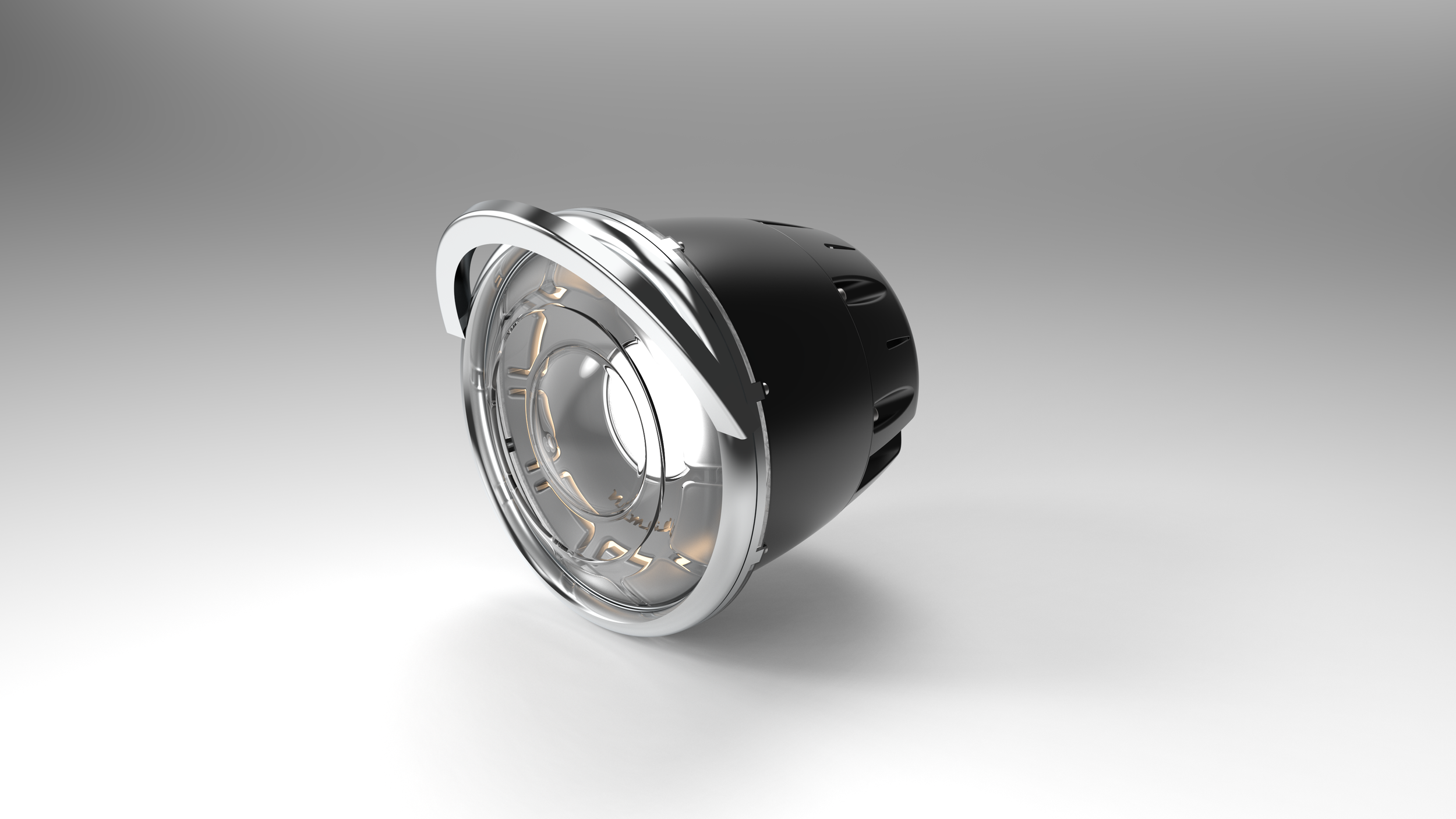

Rendered view of the final version of the headlight

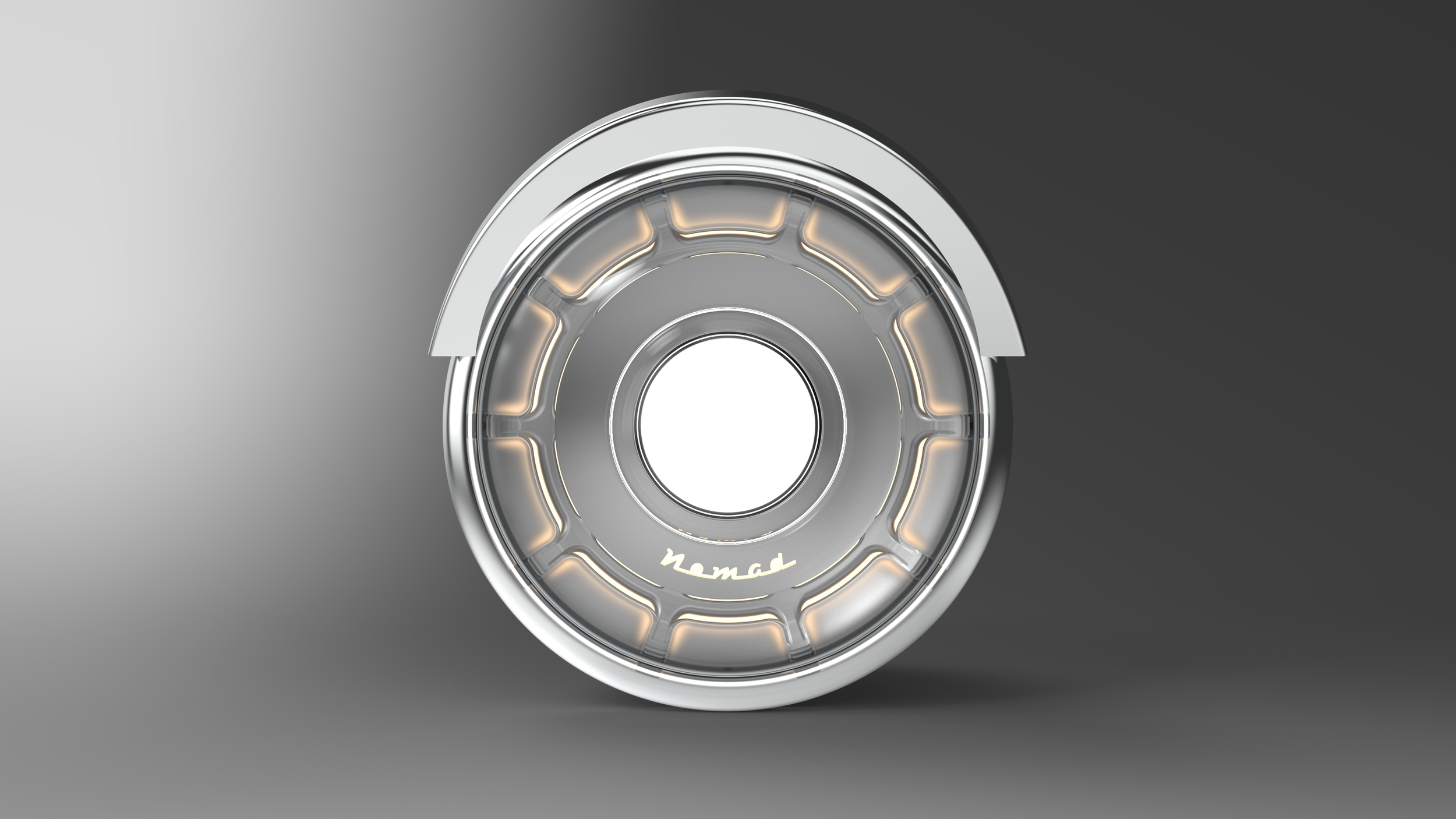

Front view of the assembly showing some aesthetic details
Turn signal and tail light for the same 1955 Nomad

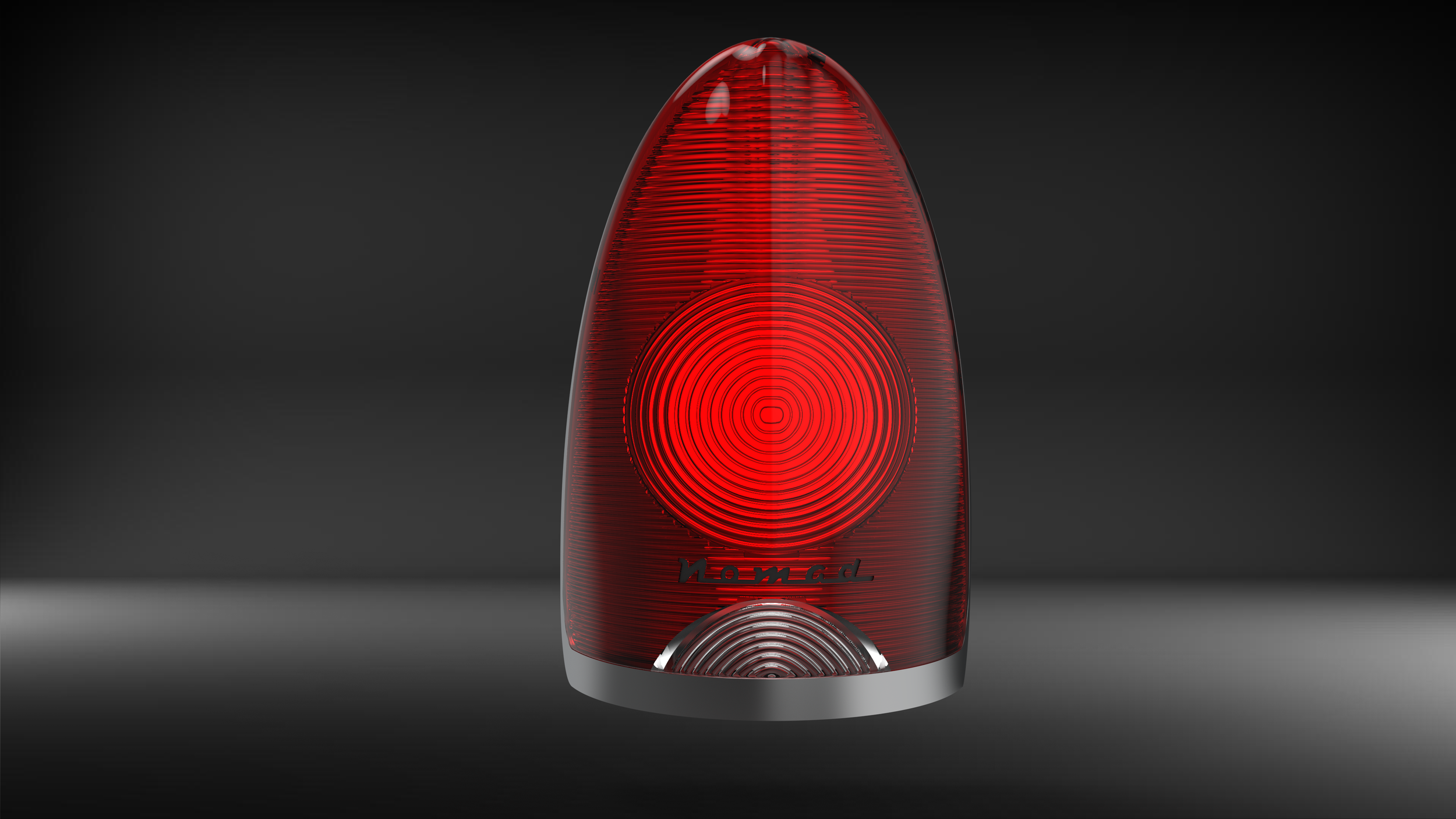

Tail light detail

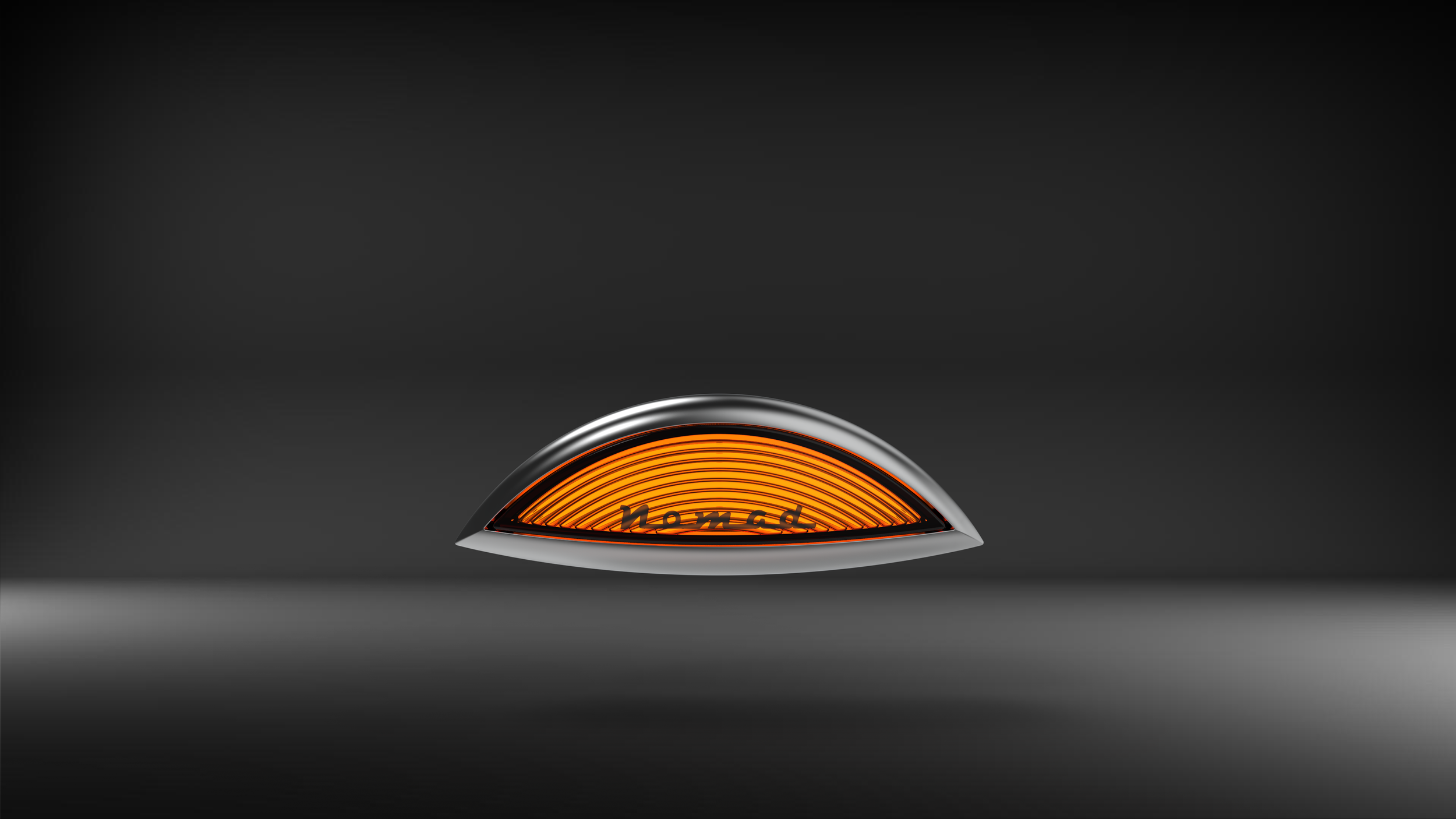

Turn signal detail

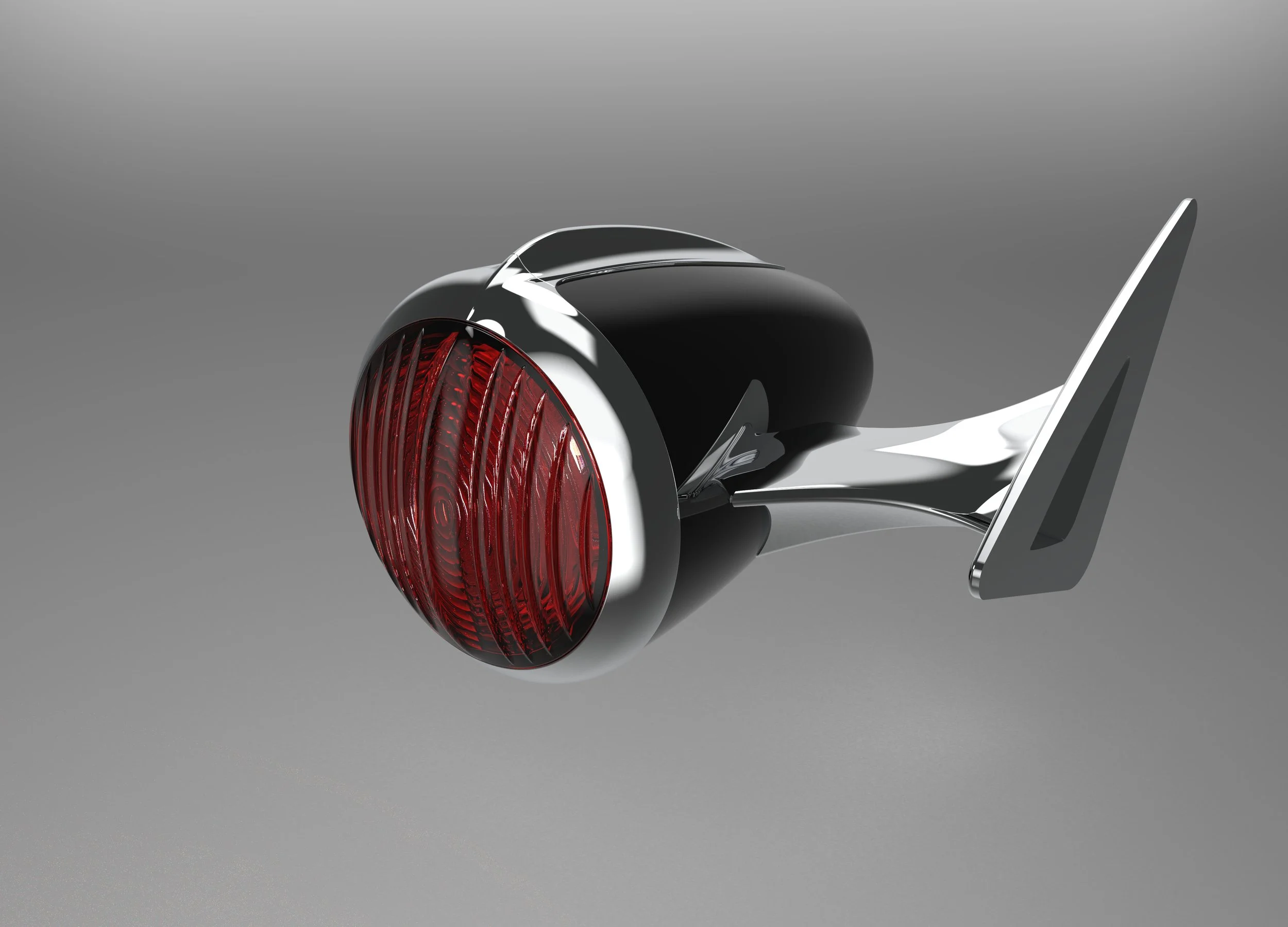

Retrofit tail light designed to fit all 1932 Ford coupes

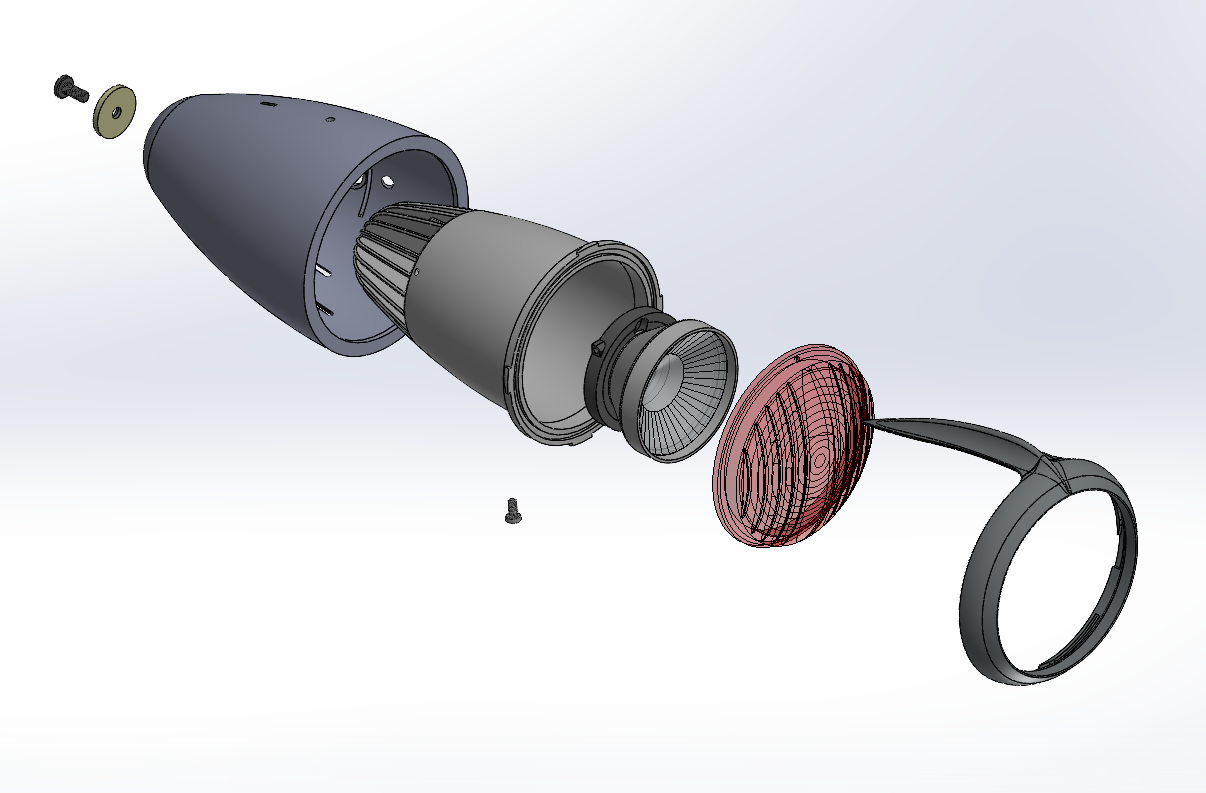

Exploded view of the 1932 Ford tail light assembly
